AWH strainers and sieve tubes are used in a variety of industries.

They are used very frequently in the food and beverage industry. They guarantee filtration to the highest hygienic standards. They are also used as HT pipe strainers in mechanical and plant engineering.

Furthermore, our strainers are characterized as important components in agricultural technology. This also applies to system protection for pumps and membranes. The strainers for KG pipes are used for wastewater treatment.

Our angle type strainer filter even the smallest particles out of the product safely and reliably.

In general, the angle type strainer has many uses. The food and beverage industry in particular benefits greatly from the high-quality system, which completely minimizes contamination of the medium by particles. The filtration system is also used in the chemical and pharmaceutical industries.

The system can also be used as a filter for machine and pump protection. For this purpose, the filter housings are mounted in front of the device to be protected.

AWH angle type strainers made of stainless steel impress with their high quality. They enable space-saving installation and are also easy to assemble. Depending on the medium used, they also have a service life of up to ten years.

The stainless steel unit makes maintenance and cleaning work easier by simply loosening the slotted nut. This allows strainer inserts to be removed quickly. The slotted nut lock therefore meets the highest hygiene standards.

The leakage/relief hole can be used to determine whether the system is still under pressure when the housing is opened.

The design of the housing allows the strainer to be removed without dismantling the pipe. Once the strainer insert has been removed, the space between it and the housing is self-cleaning by means of a scraper.

The corner tube strainer can be used flexibly thanks to various filter inserts. It can be installed as a slotted tube or perforated screen version.

Furthermore, the gap width and hole width can be individually adjusted by simply replacing the sieve insert. This allows the system to be configured according to the relevant requirements.

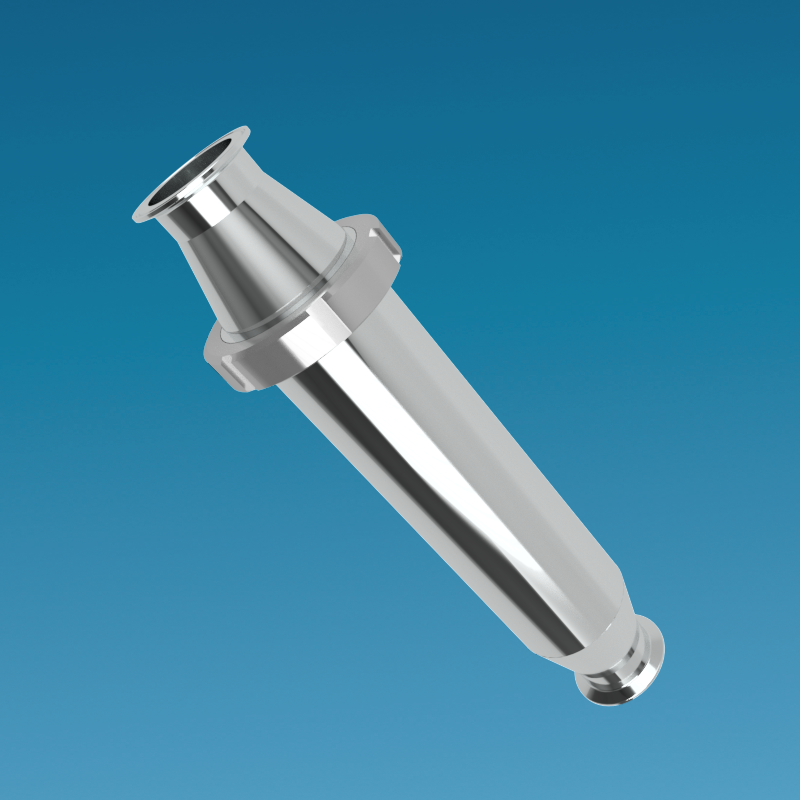

AWH slotted tube strainers have a long service life and the best self-cleaning properties in accordance with the highest hygiene standards. Thanks to their streamlined design, the tube strainers enable effective CIP cleaning.

Our AWH perforated screens are ideal for filtering processes with fibrous media. In contrast to other filtration systems, these prevent cross-flowing particles from being washed through. The screen surfaces are finely deburred by e-polishing. This prevents the media from getting caught on the so-called perforated ridge. In addition, the AWH perforated screen is highly resistant to pressure differences and pressure surges. This is due to the stable, non-perforated and roll-welded side edge.
